BS-3028T2 Trinocular Zoom Stereo Microscope

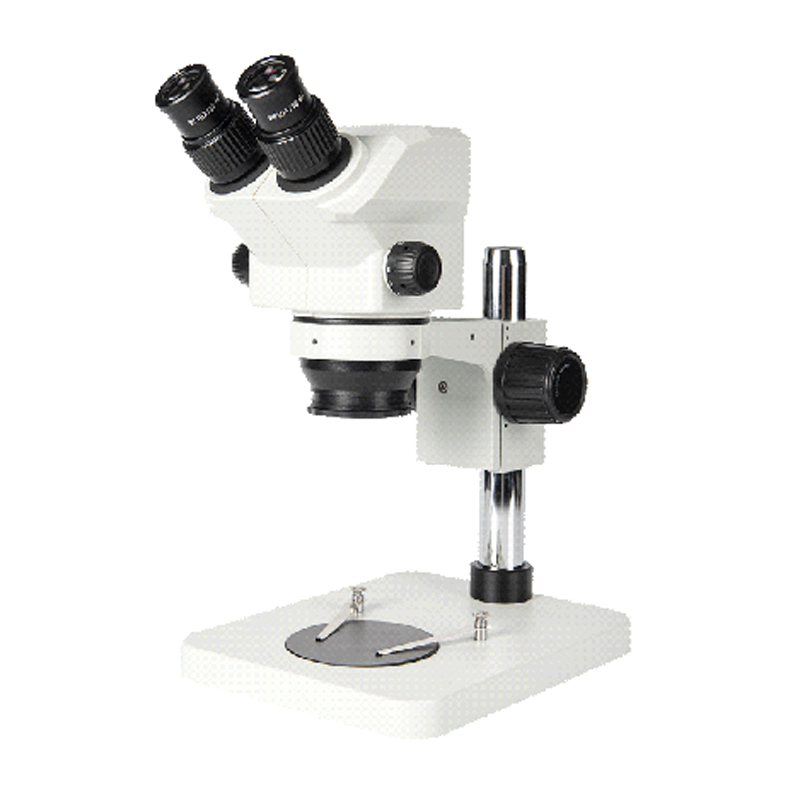

BS-3028B1

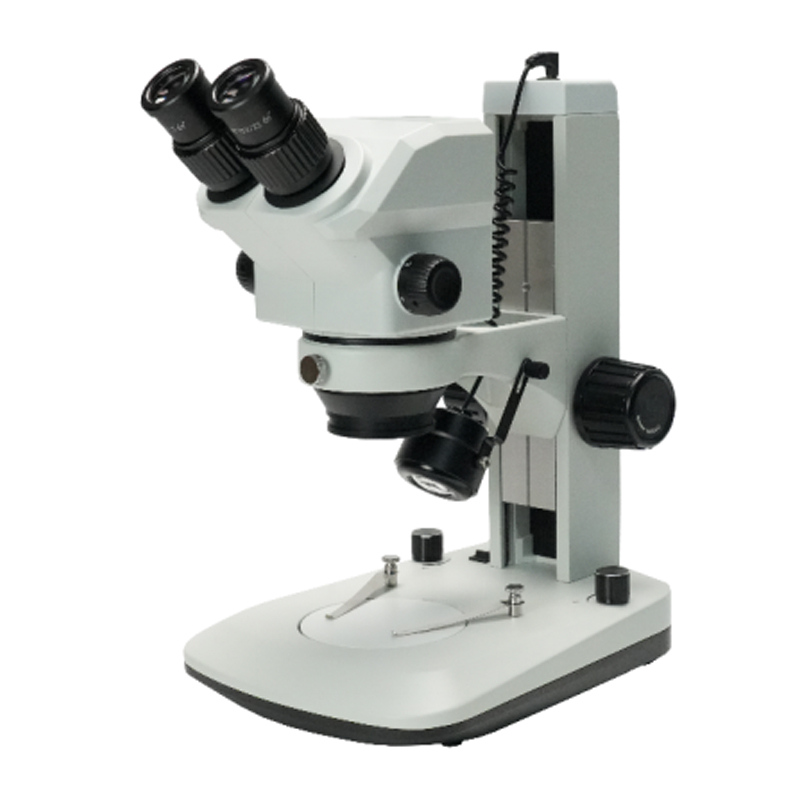

BS-3028B2

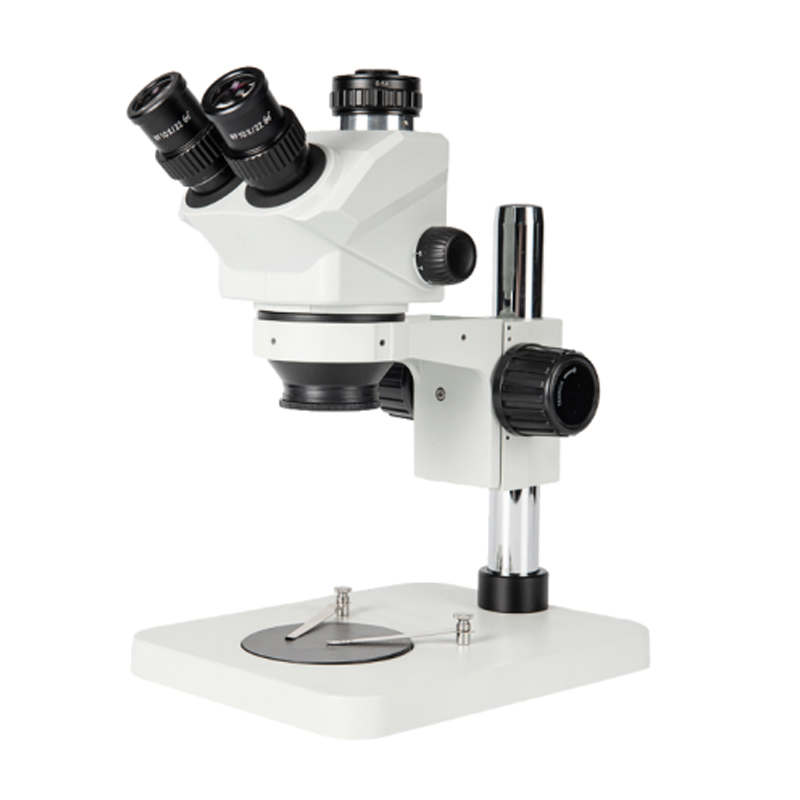

BS-3028T1

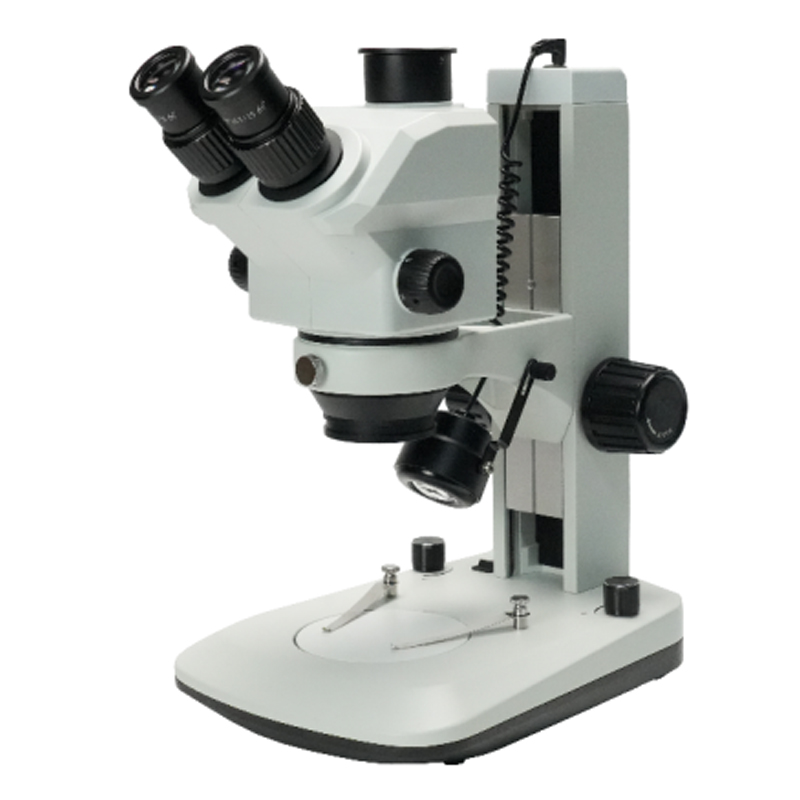

BS-3028T2
Introduction
BS-3028 series Stereo Zoom Microscopes offer sharp 3D images which are very clear throughout the zoom range. These microscopes are very popular and cost effective. Optional eyepieces and auxiliary objectives can expand magnification range and working distances.
Feature
1. Larger magnification
0.7X-6X zoom magnification power with sharp images, can be extended to 3.5X-200X with optional eyepiece and auxiliary objective.
2. Eyepieces
The standard is high eyepoint wide field eyepiece WF10X/22mm, convenience for glasses-wearing observers. WF15X/15mm, WF20X/10mm and WF25X/9mm eyepieces are optional.
3. Overlong effective working distance
Long working distance to create enough space for the users.
4. Structure design of ergonomics
Ergonomic design, sharp image, wide viewing field, high depth of field and easy to operate, less fatigue when long time use.
Application
BS-3028 series microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science and veterinary industries. The microscopes can be used for circuit board repair and inspection, SMT work, electronics inspection, dissection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.
Specification
|
Item |
Specification |
BS-3028B1 |
BS-3028T1 |
BS-3028B2 |
BS-3028T2 |
|
| Viewing Head | 45° inclined binocular head, 360° rotatable, interpupillary distance: 54-76mm, diopter adjustable. Zoom objective 0.7X-6X, working distance: 120mm |
● |
● |
|||
| 45° inclined trinocular head, 360° rotatable, interpupillary distance: 54-76mm, diopter adjustable. Zoom objective 0.7X-6X, working distance: 120mm |
● |
● |
||||
| Eyepiece | High eyepoint wide field eyepiece WF10X/22mm |
● |
● |
● |
● |
|
| High eyepoint wide field eyepiece WF15X/15mm |
○ |
○ |
○ |
○ |
||
| High eyepoint wide field eyepiece WF20X/10mm |
○ |
○ |
○ |
○ |
||
| High eyepoint wide field eyepiece WF25X/9mm |
○ |
○ |
○ |
○ |
||
| Objective | Zoom objective | 0.7X-6X |
● |
● |
● |
● |
| Auxiliary objective | 0.3X |
○ |
○ |
○ |
○ |
|
| 0.5X |
○ |
○ |
○ |
○ |
||
| 0.7X |
○ |
○ |
○ |
○ |
||
| 2X |
○ |
○ |
○ |
○ |
||
| Zoom Ratio | 1:8.6 |
● |
● |
● |
● |
|
| Working Distance | 120mm |
● |
● |
● |
● |
|
| Head Mount | 76mm |
● |
● |
● |
● |
|
| Focusing Arm | Focus holder, coarse adjustment, tension adjustable, moving range 50mm, microscope mount size: Ф76mm |
● |
● |
● |
● |
|
| Stand | Pillar stand with small base, with Φ95 black & white plate, with clips. No illumination. |
● |
● |
|||
| Stereo stand with small base, with Φ95 black & white plate, with clips. Incident and transmitted LED illumination with separate control. |
● |
● |
||||
| Illumination | LED ring light |
○ |
○ |
○ |
○ |
|
| Optical fiber source |
○ |
○ |
○ |
○ |
||
| C-Mount | 0.35× C-mount |
○ |
○ |
|||
| 0.5× C-mount |
● |
● |
||||
| 1× C-mount |
○ |
○ |
||||
| Package | 1pc/1carton, 51cm*36cm*30cm, gross weight: 6.5kg, net weight: 4.5kg |
● |
● |
● |
● |
|
Note: ● Standard Outfit, ○ Optional
Optical Parameters
|
Objective |
Standard Objective Working Distance: 120mm |
|
|
Magnification |
Field of View |
|
|
WF10×/22mm |
7.0X |
31.4mm |
|
60.0X |
3.7mm |
|
|
WF20×/10mm |
14.0X |
14.3mm |
|
120.0X |
2mm |
|

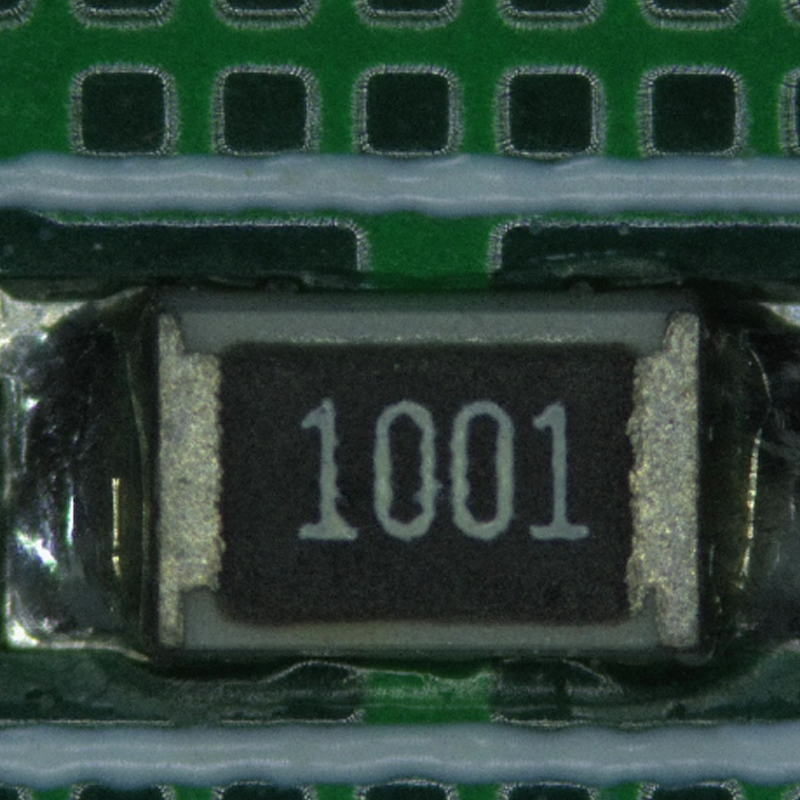

Sample Images
