Wholesale Price Simple Light Microscope - BS-2036T Biological Microscope – BestScope Detail:

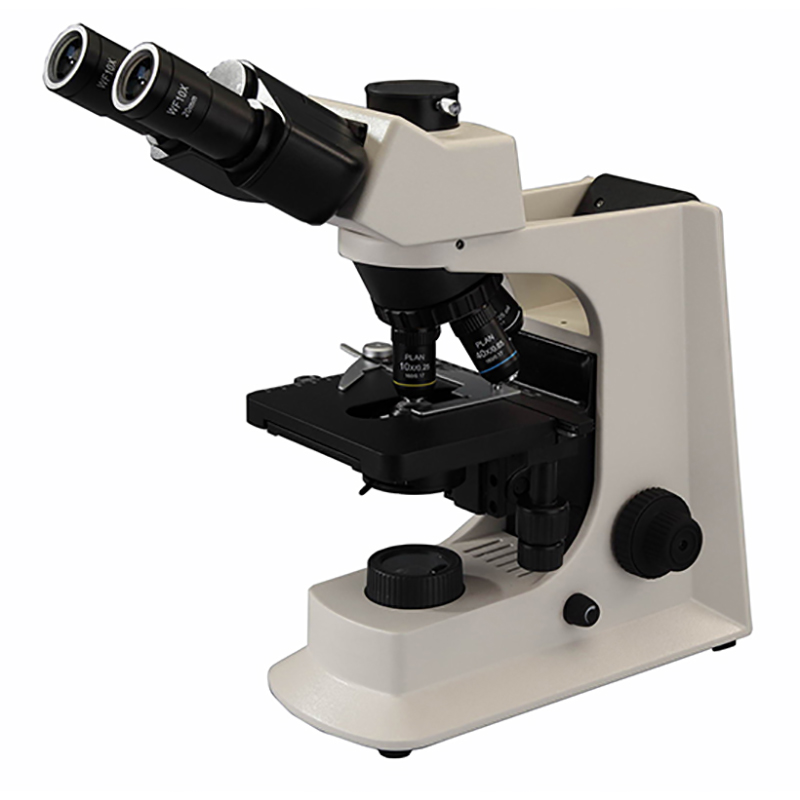

BS-2036AT BT CT DT Biological Microscope

   BS-2036AT/B/C/D

Introduction

BS-2036T series microscopes are middle level microscopes which are specially designed for college education, medical and laboratory study. They adopts high quality optical system, beautiful structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, these biological microscopes make your works enjoyable.

Feature

1. Excellent optical system, outstanding image quality with high resolution and definition.
2. Comfortable operating with ergonomic design.
3. Unique aspheric illumination system, provide bright and comfortable lighting.
4. White color is standard, blue color is optional for lively environment and happy mood.
5. Back handle and observing hole convenient for carry and operation.
6. Various accessories for upgrading.

(2) Phase contrast unit, Independent phase contrast unit (optional, apply to infinite optical system).

BS-2036 Biological Microscope Phase Contrast Kit

(3)Simple polarizing unit with polarizer and analyzer (optional).

BS-2036 Biological Microscope Polarizer and Analyzer

(4)Dry / Oil Dark Field Condenser (optional).

img (7)

(5) Mirror(optional).

img (2)

(6)Fluorescent attachment(optional, with LED or mercury light source)

img (1)

Application

BS-2036T series microscopes are ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Specification

Item

Specification

BS-2036AT

BS-2036BT

BS-2036CT

BS-2036DT

Optical System Finite Optical System

Infinite Optical System

Viewing Head Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm

Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm, Light Distribution: 20:80 (eyepiece: trinocular tube)

Eyepiece WF10×/18mm

WF10×/20mm

WF16×/13mm

Reticule Eyepiece WF10×/18mm (0.1mm)

Reticule Eyepiece WF10×/20mm (0.1mm)

Achromatic Objective 4×, 10×, 40×(S), 100×/1.25 (Oil) (S)

20×, 60× (S)

Plan Achromatic Objective 4×, 10×, 40×/0.65 (S), 100×/1.25 (Oil) (S)

20×, 60× (S)

Infinite Achromatic

Objective

E-Plan 4×, 10×, 40× (S), 100× (Oil) (S)

Plan 4×, 10×, 40× (S), 100× (Oil) (S)

Plan 20×, 60× (S)

Nosepiece Backward Quadruple Nosepiece

Backward Quintuple Nosepiece

Focusing Coaxial Coarse & Fine Focusing knobs, Travel Range: 26mm, Scale:2um

Stage Double Layers Mechanical Stage, Size: 145×140mm, Cross Travel 76×52mm, Scale 0.1mm, Two Slide Holder

Rackless Double Layers Mechanical Stage, Size: 140×135mm, Cross Travel 75×35mm, Scale 0.1mm, Two Slide Holder

Condenser Abbe Condenser NA1.25 with Iris Diaphragm

Illumination 3W LED Illumination Systems, Brightness Adjustable

6V/20W Halogen Lamp, Brightness Adjustable

6V/30W Halogen Lamp, Brightness Adjustable

Field Diaphragm

Dark Field Condenser N.A.0.9 (Dry) Dark Field Condenser(For 10×-40× objective)

N.A.1.3 (Oil) Dark Field Condenser(For 100× objective)

Polarizing Set Analyzer and Polarizer

Phase contrast unit With Infinite Plan Objectives 10× /20× /40× /100×

Fluorescence Attachment Epi-fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp.

Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G), 5W LED fluorescence lamp.

Filter Blue

Green

Yellow

Photo Adapter Used to Connect Nikon/Canon/Sony/Olympus DSLR camera to the microscope

Video Adapter 0.5X C-Mount (Focus adjustable)

1X C-Mount

Mirror Reflect Mirror

Cable Winding Device Used to wind cable on back of the microscope

Rechargeable Battery 3pcs AA rechargeable Nickel-metal hydride battery

Package 1pc/carton, 42cm*28cm*45cm, Gross Weight 8kg, Net Weight 6.5kg

Note: ● Standard Outfit, ○ Optional
