BS-6000B Inverted Metallurgical Microscope

BS-6000B not only can identify and analyze a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also micro-particles, wires, fibers, surface coating such as some of the surface conditions. Digital cameras can be added to the trinocular tube to take images and make image analysis.


Product Detail

Quality Control

Product Tags

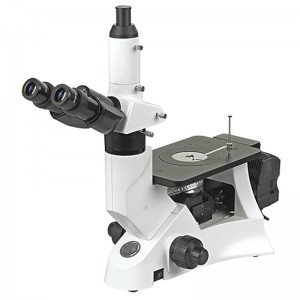

3-BS-6000B Inverted Metallurgical Microscope

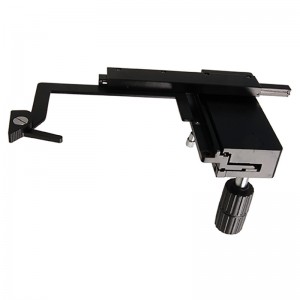

2-BS-6000B Inverted Metallurgical Microscope X-Y Stage

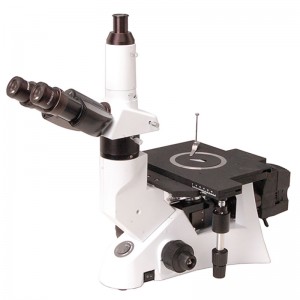

1-BS-6000B Inverted Metallurgical Microscope with Double Layer Stage

 BS-6000B

Attachable

X-Y stage



BS-6000B with double layer X-Y stage



Introduction

BS-6000B not only can identify and analyze a variety of metals, alloys, non-metallic material and the organizational structure and integrated circuits, but also micro-particles, wires, fibers, surface coating such as some of the surface conditions. Digital cameras can be added to the trinocular tube to take images and make image analysis.

Features

Infinite optical system provides excellent optical functions.
With the stable stand structure, advanced stage design and comfortable operation.

Application

BS-6000B is widely used in institutes and laboratories to observe and identify the structure of various metal and alloy, it also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, other non-metallic materials and so on.

Specification

Item

Specification

BS-6000B

Optical System Infinite Optical System

Viewing Head Trinocular head inclined at 30°, interpupillary distance 48-75mm

Eyepiece High-point, extra wide field eyepiece EW10×/ 20mm

Infinite Plan Achromatic Objective 4×/ 0.1/∞/-    WD 17.3mm

5×/0.12/∞/-    WD 15.4mm

10×/0.25/∞/-   WD 10.0mm

20×/0.40/∞/0   WD 5.8mm

40×/0.65/∞/0   WD 0.52mm

40×/0.60/∞/0   WD 2.9mm

50×/0.75/∞/0   WD 0.32mm

80×/0.90/∞/0   WD 0.2mm

100×/0.80/∞/0  WD 2mm

Nosepiece Quintuple nosepiece

Stage Plain stage with slide clips 160×250mm

Attachable mechanical stage, X-Y coaxial control, moving range 120×78mm

Double layer mechanical stage 226×178mm, Moving range 50×50mm

Auxiliary stage

Focusing Coaxial coarse & fine adjustment, Vertical objective movement, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation, Fine Division 0.002mm. Moving range upto 8mm, down 3mm

Kohler Illumination Halogen lamp 6V/ 30W, Kohler illumination

Filter Blue, Yellow, Green and Frosted filters

Polarization Set Polarizer and Analyzer

Specimen Presser For metallurgical specimen preparation

Photo Adapter Used to connect DSLR camera to the microscope

Video Adapter 1×, 0.5× C-mount adapter

Note: ●Standard parts, ○Optional parts

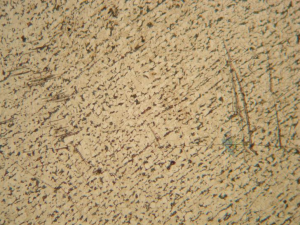

Sample Image

阿信啊
下啊水水

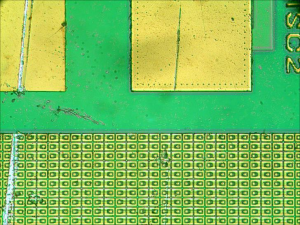

Sample Image
